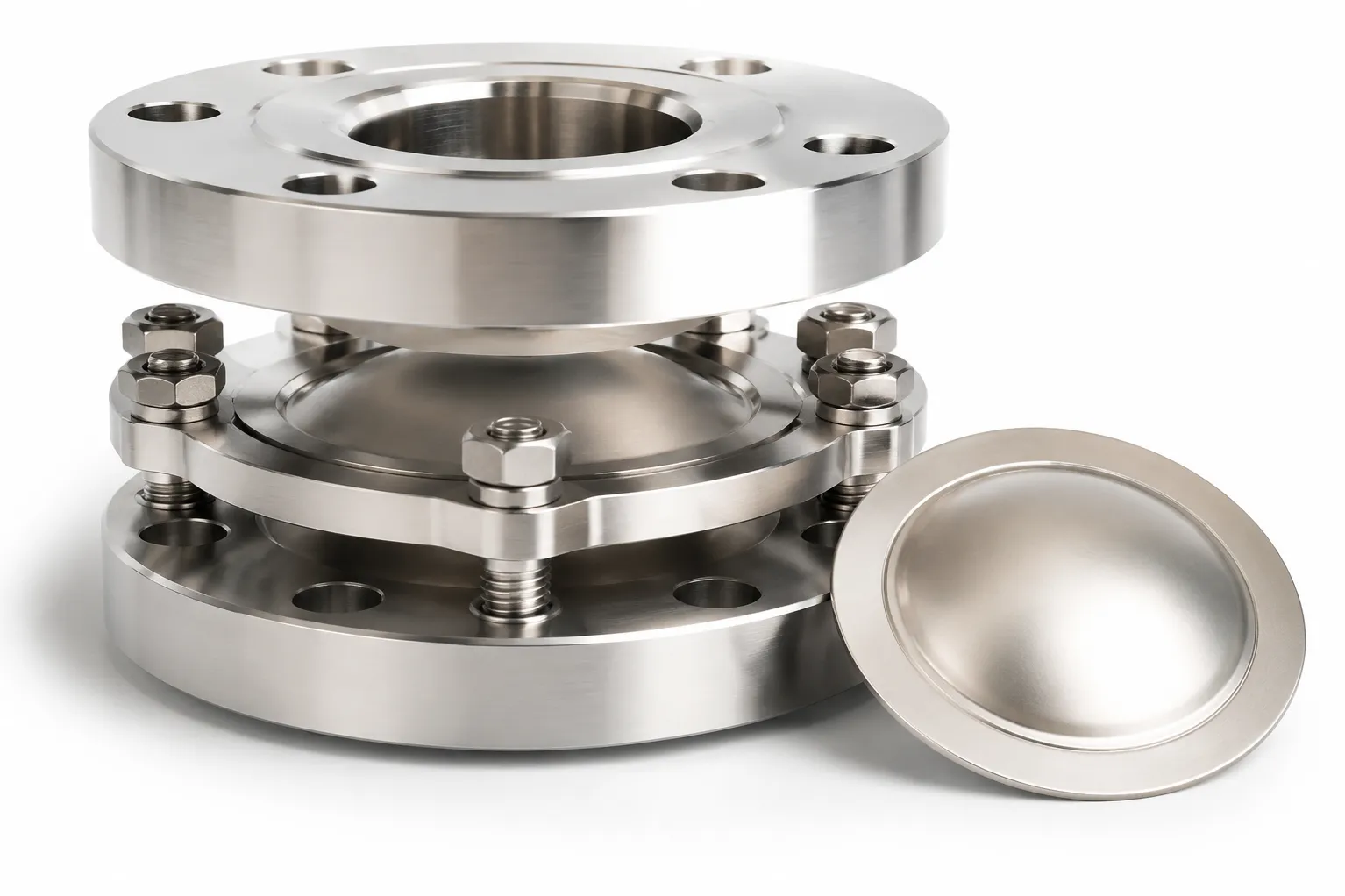

Forward acting rupture discs are widely used in industrial pressure protection because of their comparatively simple operating principle. Process pressure acts on the concave side of the dome, placing the disc material under tensile stress until it opens at the specified condition.
Although the concept is straightforward, reliable selection depends on more than choosing a nominal burst pressure. A forward acting rupture disc supplier must understand the process medium, temperature, pressure behaviour, vacuum exposure and required discharge capacity.
Where Forward Acting Discs May Be Considered
Forward acting designs can be used across vessels, storage systems, heat exchangers, reactors and piping arrangements. They may be considered where:
- A simple non-reclosing relief device is required
- The specified burst pressure is relatively low
- The process operates sufficiently below the burst condition
- Pressure cycling is limited or properly assessed
- Material compatibility can be achieved
- An appropriate support arrangement is available where required
Different forward acting designs may include conventional domed discs, composite assemblies or scored configurations. They should not be treated as interchangeable.
Understand the Pressure Margin
A key evaluation point is the difference between normal operating pressure and the marked burst pressure. Traditional forward acting designs may require a greater operating margin than certain reverse buckling alternatives.
If the process frequently approaches the burst pressure, the disc may be exposed to repeated tensile loading. This can shorten service life or contribute to premature opening. Procurement teams should provide the supplier with normal, maximum and transient pressure values rather than only the design pressure.
The manufacturer’s stated operating ratio should be applied to the exact product, material, size, temperature and service conditions. It should not be copied from a general catalogue and applied across all installations.
Check Vacuum and Back-Pressure Conditions
Some forward acting discs may require vacuum support when exposed to full or partial vacuum. Vacuum may arise during vessel draining, steam condensation, cooling, pump operation or upstream process changes.
Back pressure can also develop from a common relief header or downstream equipment. Both steady and variable back pressure should be disclosed. The supplier can then determine whether a support component, alternative design or different installation arrangement is necessary.
Examine Opening Characteristics
During relief, the disc must open in a way that provides the required flow path. Ask the supplier about:
- Opening pattern
- Fragmentation characteristics
- Available net flow area
- Gas or liquid suitability
- Interaction with downstream piping
- Installation upstream of a relief valve
- Resistance to product build-up
- Inspection requirements
Where fragmentation could affect downstream equipment, the selected disc’s stated behaviour must be carefully reviewed. Descriptions such as “non-fragmenting” should apply to the precise configuration being offered.
Compare the Full Supply Package
Price comparison should cover more than the disc itself. Review whether the quotation includes:
- Dedicated holder
- Gaskets where applicable
- Vacuum support
- Burst indication provision
- Identification tags
- Test or inspection documentation
- Installation guidance
- Recommended spares
An initially inexpensive disc can become costly if it causes repeated shutdowns, needs unavailable accessories or does not match the installed holder.
Provide Accurate Enquiry Information
For faster technical evaluation, send the forward acting rupture disc supplier a structured datasheet containing pressure, temperature, medium, material, size, flange standard, discharge conditions and applicable codes. Photographs of an existing assembly may help with preliminary identification but should not replace dimensional verification.
Industrial buyers in Vadodara and across Gujarat frequently manage brownfield plants where older holders, mixed equipment standards and incomplete records create procurement risk. Flammer Technologies Private Limited can participate in application discussions, but the plant should still validate the final selection through its authorised engineering and safety personnel.
A forward acting disc can be an effective pressure-protection solution when its operating limits are understood. Correct pressure margin, vacuum assessment, material compatibility and installation control are far more important than selecting a device from nominal size and burst pressure alone.
